Randers Gears Expands Production

Randers Gears Expands Production with Two PUMA 4100MA Turning Centers

Randers Gears A/S is increasing its production capacity by adding two PUMA 4100MA turning centers from DN Solutions Europe. The machines have been ordered and are expected to be delivered within 4 weeks.

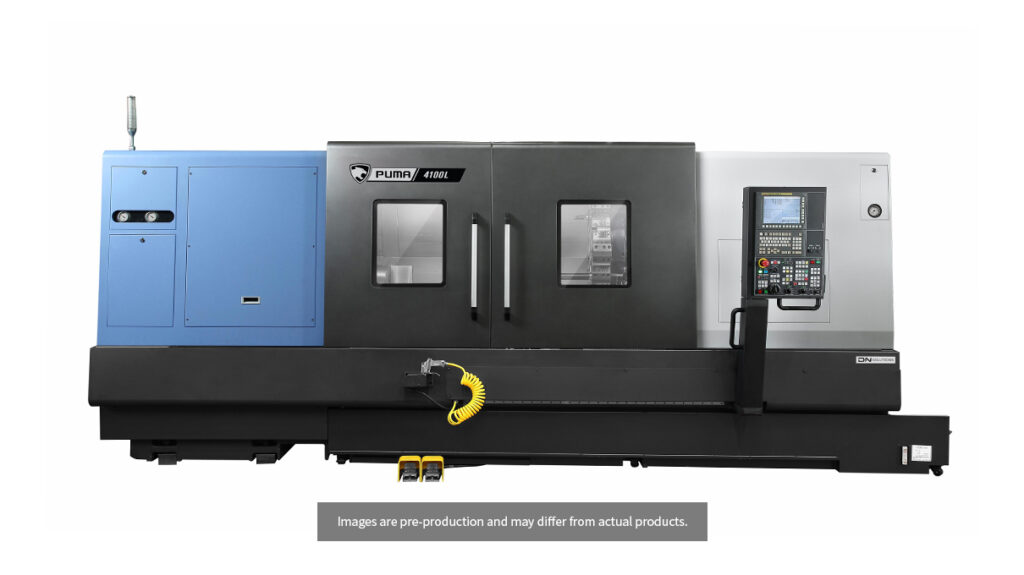

The PUMA 4100 series includes horizontal turning centers designed for precise machining of medium to large-sized parts. These machines meet Randers Gears’ high demands for both precision and capacity.

Product Specifications Comparison

Product Specifications

  • These specifications are based on the global standard and may differ by region.
CAPACITY
Chuck size Max. Turning Diameter Max. Turning Length
TRAVELS
X-Axis Rapid Traverse Z-Axis Rapid Traverse X-Axis Travel Distance Z-Axis Travel Distance
MAIN SPINDLE
Max. Spindle Speed Max. Spindle Power Max. Spindle Torque
TURRET
No. of tool station Rotary Tool r/min
DIMENSIONS
Length Height Width Weight
PUMA 4100LMA
12 inch 550 mm 2060 mm
16 m/min 20 m/min 352 mm 2155 mm
3000 r/min 37 kW 1024 N·m
12 ea 4000 r/min
5774 mm 2272 mm 2275 mm 11050 kg
PUMA 4100LMB
15 inch 550 mm 2028 mm
16 m/min 20 m/min 352 mm 2155 mm
2000 r/min 30 kW 1611 N·m
12 ea 4000 r/min
5774 mm 2272 mm 2275 mm 11550 kg
PUMA 4100LMC
21 inch 550 mm 1988 mm
16 m/min 20 m/min 352 mm 2155 mm
1500 r/min 37 kW 2432 N·m
12 ea 4000 r/min
5774 mm 2272 mm 2275 mm 12050 kg
PUMA 4100MA
12 inch 550 mm 1010 mm
16 m/min 20 m/min 352 mm 1105 mm
3000 r/min 37 kW 1024 N·m
12 ea 4000 r/min
4654 mm 2194 mm 2056 mm 9600 kg
PUMA 4100MB
15 inch 550 mm 978 mm
16 m/min 20 m/min 352 mm 1105 mm
2000 r/min 30 kW 1611 N·m
12 ea 4000 r/min
4654 mm 2194 mm 2056 mm 10100 kg
PUMA 4100MC
21 inch 550 mm 938 mm
16 m/min 20 m/min 352 mm 1105 mm
1500 r/min 37 kW 2432 N·m
12 ea 4000 r/min
4654 mm 2194 mm 2056 mm 10600 kg
PUMA 4100XLMA
12 inch 550 mm 3100 mm
16 m/min 20 m/min 352 mm 3150 mm
3000 r/min 37 kW 1024 N·m
12 ea 4000 r/min
7024 mm 2335 mm 2276 mm 12050 kg
PUMA 4100XLMB
15 inch 550 mm 3068 mm
16 m/min 20 m/min 352 mm 3150 mm
2000 r/min 30 kW 1611 N·m
12 ea 4000 r/min
7024 mm 2335 mm 2276 mm 12550 kg
PUMA 4100XLMC
21 inch 550 mm 3028 mm
16 m/min 20 m/min 352 mm 3150 mm
1500 r/min 37 kW 2432 N·m
12 ea 4000 r/min
7024 mm 2335 mm 2276 mm 13050 kg
PUMA 5100LMA
15 inch 650 mm 2042 mm
16 m/min 20 m/min 362 mm 2155 mm
2000 r/min 37 kW 2432 N·m
12 ea 4000 r/min
5879 mm 2272 mm 2275 mm 1170 kg
PUMA 5100LMB
21 inch 650 mm 2002 mm
16 m/min 20 m/min 362 mm 2155 mm
1500 r/min 45 kW 2958 N·m
12 ea 4000 r/min
5879 mm 2272 mm 2275 mm 12200 kg
PUMA 5100MA
15 inch 650 mm 992 mm
16 m/min 20 m/min 362 mm 1105 mm
2000 r/min 37 kW 2432 N·m
12 ea 4000 r/min
4759 mm 2194 mm 2056 mm 10250 kg
PUMA 5100MB
21 inch 650 mm 952 mm
16 m/min 20 m/min 362 mm 1105 mm
1500 r/min 45 kW 2958 N·m
12 ea 4000 r/min
4759 mm 2194 mm 2056 mm 10750 kg
PUMA 5100XLMA
15 inch 650 mm 3068 mm
16 m/min 20 m/min 362 mm 3150 mm
2000 r/min 37 kW 2432 N·m
12 ea 4000 r/min
7059 mm 2335 mm 2276 mm 12700 kg
PUMA 5100XLMB
21 inch 650 mm 3028 mm
16 m/min 20 m/min 362 mm 3150 mm
1500 r/min 45 kW 2958 N·m
12 ea 4000 r/min
7059 mm 2335 mm 2276 mm 13200 kg
